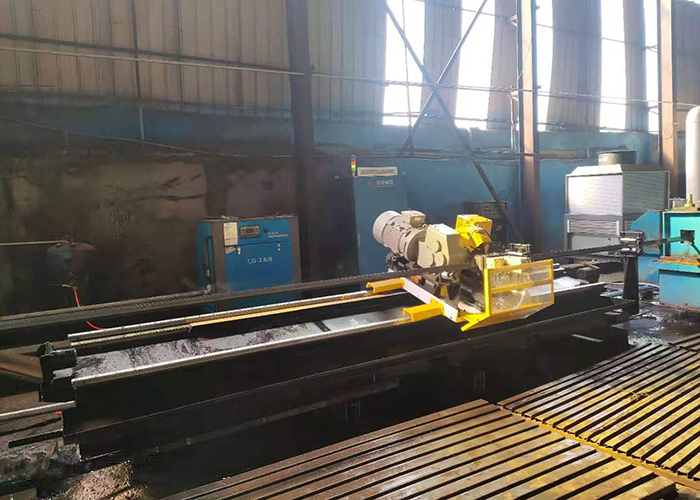

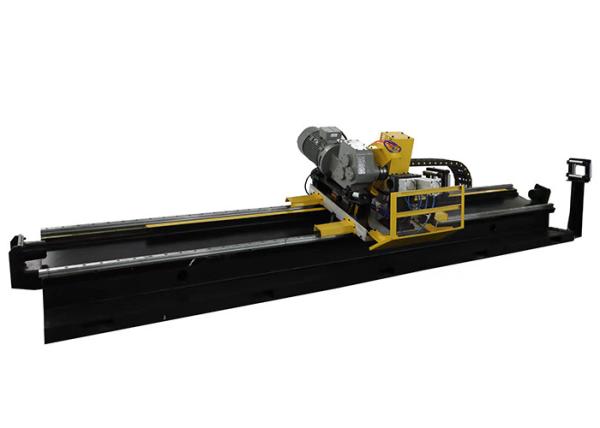

Tube Bundle Orbital Cutting Flying Saw Factory Carbon Steel Energy Supply
Introduction
"CNC Milling Cold Saw" adopts double-edge polar coordinates and
two-axis motion control technology. Burr-free, low-noise,
high-quality cutting. It is suitable for medium and large diameter
pipes with thick wall and high strength. The same goes for square
and rectangular tube cuts.
| Material | Q195 Q235 SPCC | |
Cutting range | Round tube:MAX89mm | thick:0.5～4.0mm |
| Square tube:MAX65×65mm | thick:0.5～4.0mm | |
| Rectangular tube:MAX 50×80mm | thick:0.5～4.0mm | |
| Production speed | 100m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
Features
1. The equipment base is equipped with inlet guide rollers (upper and lower, left and right rollers), the front end of the clamp is equipped with auxiliary guide rollers, and the final discharge position has idlers. All idlers help the parallel movement of the pipe during the sawing process.
2. Both ends of the saw body are equipped with carriage safety buffers;
3. The saw blade is equipped with a steel brush device to remove iron filings on the saw blade when rotating;
Our service
1. Professional pre-sales consultation and after-sales service to
help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold
flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce
waste and reduce costs
7. Control the production progress and quality of the machine, and
provide you with detailed information in time
|
|
