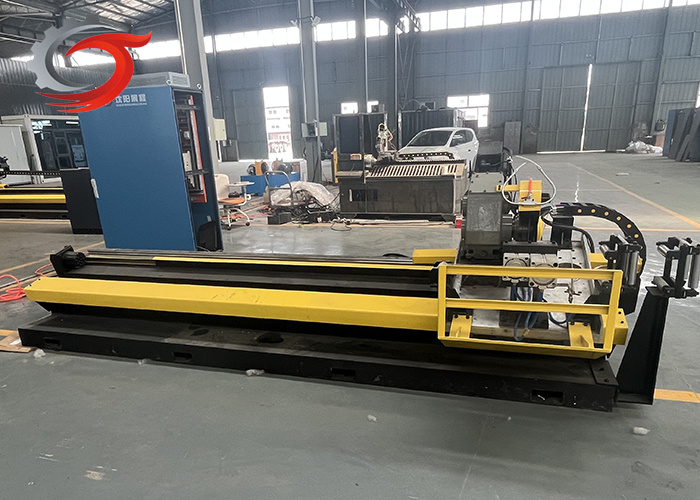

Two-blade cold saw CNC cutting circular pipe saw Cutting machine flying saw
Introduction
This orbital flying saw is automatic control (manual function is
available), and adopts double milling cutter rotary cold cutting
technology. The final cutting is smooth and burr-free, eliminating
the need for the secondary deburring process, saving money and
effort.
| material | Q195 Q235 SPCC | |
Cutting range | Round tube:MAX63mm | thick:0.5～3.0mm |
| Square tube:MAX50×50mm | thick:0.5～3.0mm | |
| Rectangular tube:MAX 40×60mm | thick:0.5～3.0mm | |
| Production speed | 120m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 4420*1280*1280mm(as per final drawing) | |
Motor list | Drive:15KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 15KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Oil supply system | Auto oil filling | |
| Saw blade | High speed steel | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. The cold saw blade rotates at low speed and has low noise;
2. When cutting, the saw blade is crushed without harm to people;
3. Remove the heavy cutting and deburring machine to save costs and
improve production efficiency.
our service
1. Professional pre-sales consultation and after-sales service to
help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold
flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce
waste and reduce costs
7. Control the production progress and quality of the machine, and
provide you with detailed information in time
|
|
