| Brand Name : | JCCS |
| Model Number : | JCCS-76 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 20 Set/Sets per Month |
| Delivery Time : | 15-30 work days |

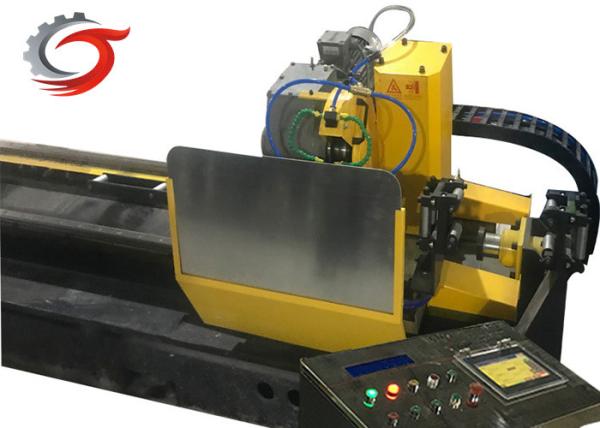

Cold rolling mill iron pipe machine CNC cold saw high quality steel pipe rolling mill steel pipe cutting line
Introduction
For cutting various steels and forms, such as solid bars, tubes,
rails, etc.
For cutting various non-ferrous metal materials, such as aluminum,
copper, bronze, brass, pipes, bars, plates, etc.
| Material | Q195 Q235 SPCC | |
Cutting range | Round tube:MAX89mm | thick:0.5～4.0mm |
| Square tube:MAX65×65mm | thick:0.5～4.0mm | |
| Rectangular tube:MAX 50×80mm | thick:0.5～4.0mm | |
| Production speed | 100m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 5420*1380*1280mm(as per final drawing) | |
Motor list | Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 22KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Clamp block model | tape shape to avoid scratching the steel pipe | |
| Saw blade | High speed steel | |
| main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. Low cutting time and high production speed are realized.
2. Fully automatic control by NC with user-friendly HMI interface,
no need for the operator to be at the control station all the time
3. AC, DC or linear servo motor for the acceleration of the mobile
trolley
Our service
1. Professional pre-sales consultation and after-sales service to
help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold
flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce
waste and reduce costs
7. Control the production progress and quality of the machine, and
provide you with detailed information in time
|
|
