| Brand Name : | JCCS |
| Model Number : | JCCS-50 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 20 Set/Sets per Month |
| Delivery Time : | 15-30 work days |

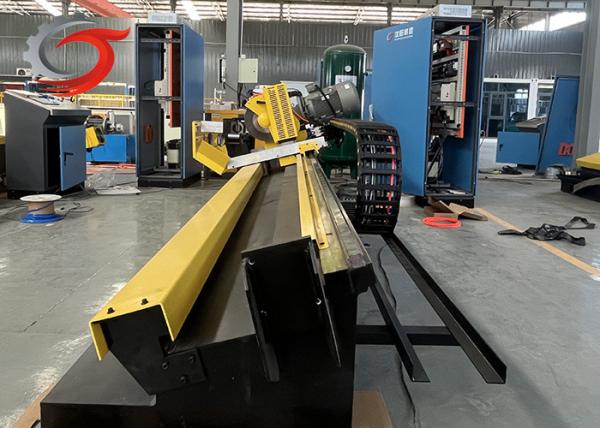

Pipe Cutting Cold Cutting Metal Saw Flying Cutting Saw Steel Pipe Machine Circular Saw Cutting Steel Cold Saw
Introduction
Cold saw cutting machines are designed to make clean and very
precise in-line cuts without compromising effective production
speed, and on this basis optimize cutting performance parameters.
| material | Q195 Q235 SPCC | |
Cutting range | Round tube:MAX63mm | thick:0.5～3.0mm |
| Square tube:MAX50×50mm | thick:0.5～3.0mm | |
| Rectangular tube:MAX 40×60mm | thick:0.5～3.0mm | |
| Production speed | 120m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 4420*1280*1280mm(as per final drawing) | |
Motor list | Drive:15KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 15KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Clamp | Pneumatic | |
| Clamp block model | tape shape to avoid scratching the steel pipe | |
| Oil supply system | Auto oil filling | |
| Saw blade | High speed steel | |
| main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. Suitable for almost all kinds of pipes
2. Remove secondary chamfering or deburring
3. Carbon Steel, Stainless Steel, HSLA
4. High-speed and high-precision cutting.
5. Excellent cutting edge, no burr, cost saving
our service
1. Advanced production testing equipment and strict quality control
system ensure good and stable product quality.
2. Cost-effective and long-life saw blades help customers save more
money.
3. The steel plate is chrome-plated, the blade is rust-proof, and
the appearance is better.
4. Factory direct sales ensure more professional service and prompt
delivery time.
|
|
