    CNC 53mm High Speed Cold Cut Saw 2.5mm Friction Machine

    Ask Lasest Price
    Brand Name : JCCS
    Model Number : JCCS-32
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

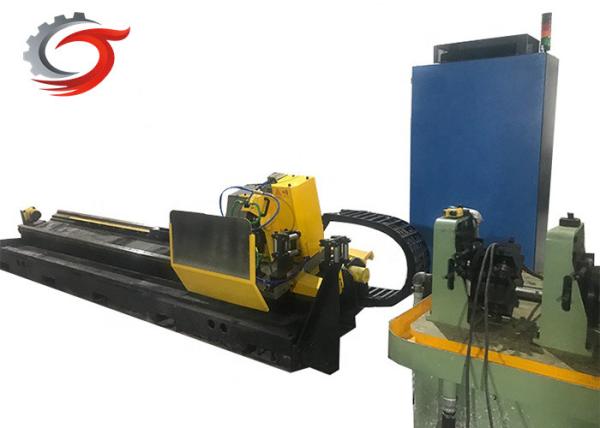

    CNC 53mm High Speed Cold Cut Saw 2.5mm Friction Machine

    CNC pipe cutting machine pipe machine flying saw pipe mill process high speed



    Introduction

    There is no need for any facing or chip removal, even in hollow sections, resulting in a clean cut of the end. The machine is fully CNC and very user friendly. Ideal for low carbon and stainless steel, the machine is equipped with a console with the most modern MMI to provide the operator with accurate production status and extensive troubleshooting.


    materialQ195 Q235 SPCC

    Cutting range

    Round tube:MAX53mmthick:0.5~2.5mm
    Square tube:MAX40×40mmthick:0.5~2.5mm
    Rectangular tube:MAX 30×50mmthick:0.5~2.5mm
    Production speed120m/min(length 6 meter,dia.≤25mm)
    Power supplyAC380V,3PH,50HZ
    Mechanical length4420*1280*1280mm(as per final drawing)

    Motor list

    Drive:15KWPHASE servo motor
    saw: 11KWSiemens AC motor
    Linear guideHiwin Chinese Taiwan
    Gear rackKH from Chinese Taiwan
    Cable protectionDrag chain
    Carriage protectionSafety bumpers for carriage are equipped at both ends
    Equipment documentUser’s manual & electrical diagram


    Features

    Our product range is designed with high quality raw materials such as stainless steel and mild steel and is widely used in the construction of various construction equipment.



    our service
    1. Professional pre-sales consultation and after-sales service to help you find the best solution
    2. Discuss technical details with our professional engineers
    3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
    4. Check the cold flying saw before shipment
    5. After the warranty period, spare parts are provided at cost
    6. Professional engineers help you increase production, reduce waste and reduce costs
    7. Control the production progress and quality of the machine, and provide you with detailed information in time
